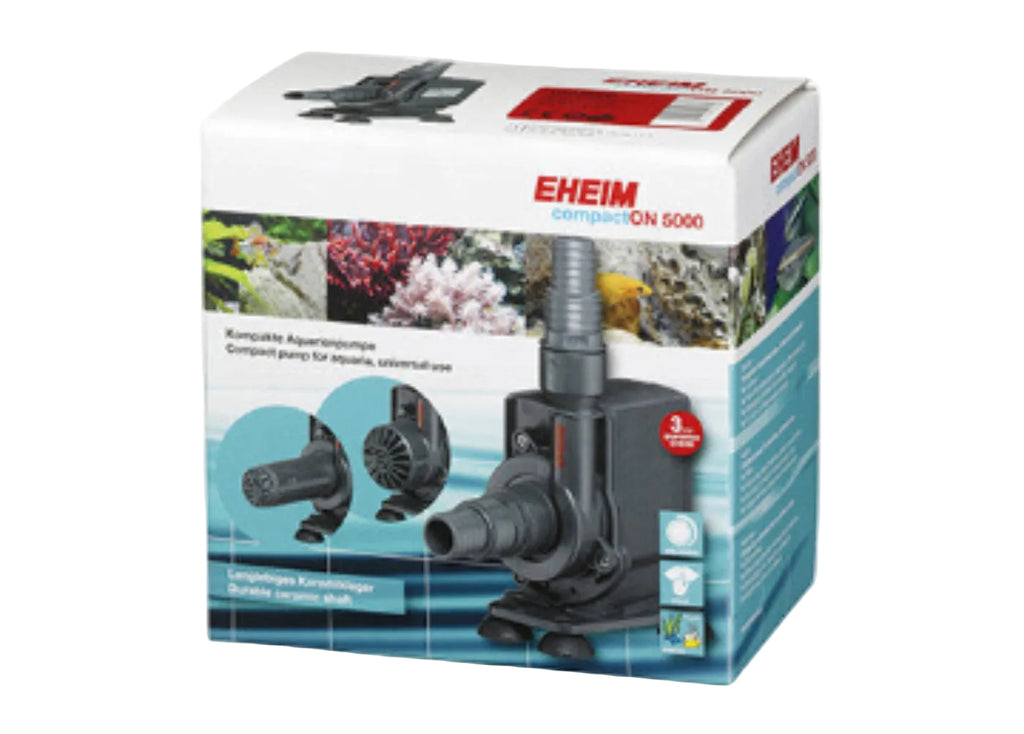

Eheim compact ON 5000 Universal Aquarium Pump (5000 l/h)

The Eheim compact ON 5000 is a compact, powerful, and whisper-quiet universal aquarium pump delivering a maximum flow rate of 5000 l/h at just 70 watts. < cite index="1917-1">Compared to the pumps of the Eheim compact and compact+ series, the power consumption was again improved by up to 50%</cite> — making the compact ON 5000 one of the most energy-efficient high-flow pumps available in its class.

< cite index="1916-1">The Eheim compact ON 5000 can also be modified for use outside of the water</cite> — making it equally suitable for sump returns, external circulation, pond use, and in-tank powerhead applications. < cite index="1916-1">Thanks to its high quality material it is also possible to use it without problems in marine water.</cite>

The compact ON 5000 features a ceramic bearing for silent, long-lasting operation, and comes supplied with an accessories bag including a suction basket and threaded coupling for immediate versatile use. Fastened securely with robust suction cups, it can be positioned quickly and stably in any aquarium or sump setup.

Key Features

• 5000 l/h maximum flow rate: High-capacity output suitable for large aquariums, sump systems, pond setups, and large circulation applications
• 70W power consumption: < cite index="1917-1">Up to 50% more energy efficient than the compact and compact+ series</cite> — exceptional output-to-watt ratio
• 3.6m maximum pump head: Powerful enough for sump-to-display returns and multi-level plumbing setups
• Ceramic bearing: Silent, long-lasting operation — ceramic construction significantly reduces wear and noise
• Submersible and external use: < cite index="1916-1">Can be operated inside or outside the aquarium or filter sump</cite> — versatile installation options
• 25/34mm hose connections: Both pressure and suction sides accept 25/34mm Eheim hose and compatible fittings
• Robust suction cups: Secure, stable mounting to aquarium glass or sump walls
• Accessories bag included: Suction basket and threaded coupling included — ready to use straight out of the box
• Freshwater and marine compatible: < cite index="1916-1">Suitable for use in both fresh and marine water</cite>
• Successor to the compact and compact+ range: Improved efficiency, performance, and reliability over previous Eheim compact series

Compatibility

• Suitable for: Large freshwater and marine aquariums, sump systems, pond setups, and circulation applications
• Hose connections: 25/34mm (pressure and suction sides)
• Operation: Submersible or external (in or out of water)
• Power: 70W / 230V / 50Hz

Product Details

• Brand: Eheim
• Model: compact ON 5000
• Type: Universal Aquarium Pump
• Flow Rate: 5000 l/h (max)
• Max Pump Head: 3.6m
• Power Consumption: 70W / 230V / 50Hz
• Cable Length: 2.0m
• Hose Connection: 25/34mm (pressure and suction)
• Dimensions (L x W x H): 142 x 92 x 154mm
• Suitable For: Freshwater and marine aquariums

The Eheim compact ON 5000 is ideal for aquarium keepers, reefers, and pond enthusiasts who need a compact, high-flow, energy-efficient pump for large aquarium circulation, sump returns, or external water movement applications.
